The Queen Elizabeth Hospital Mental Health Rehabilitation Service
Prepared for Central Glass: coordinated 2D and 3D workshop drawings for the facility’s external and internal aluminium windows and doors, supporting fabrication, review and installation.

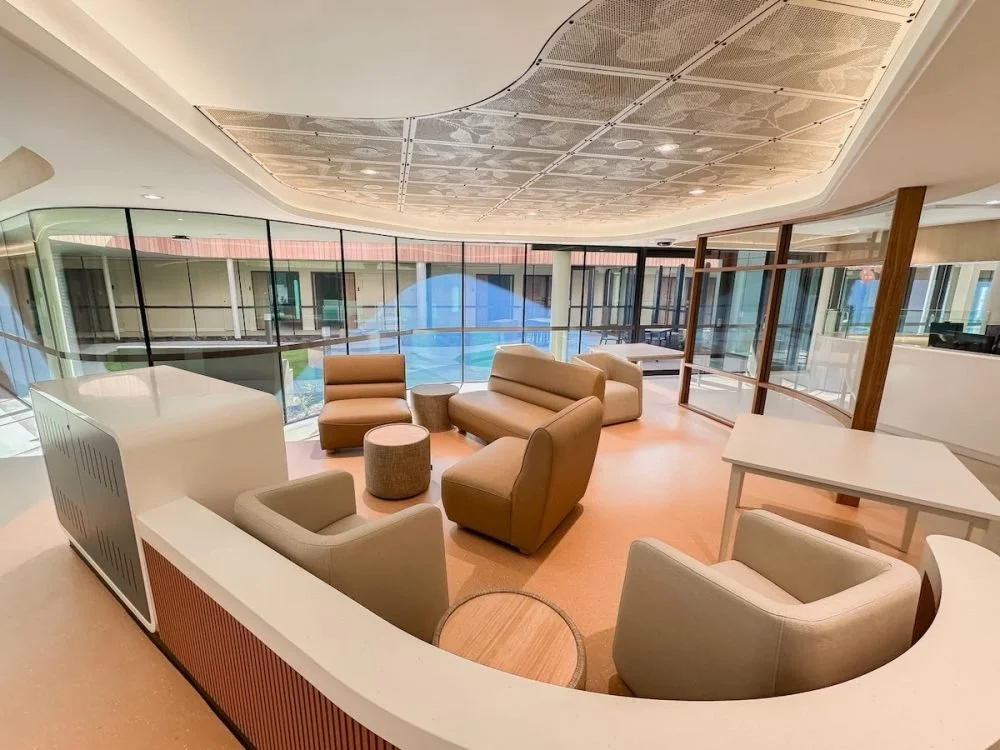

From 3D Coordination to Built Courtyard Glazing

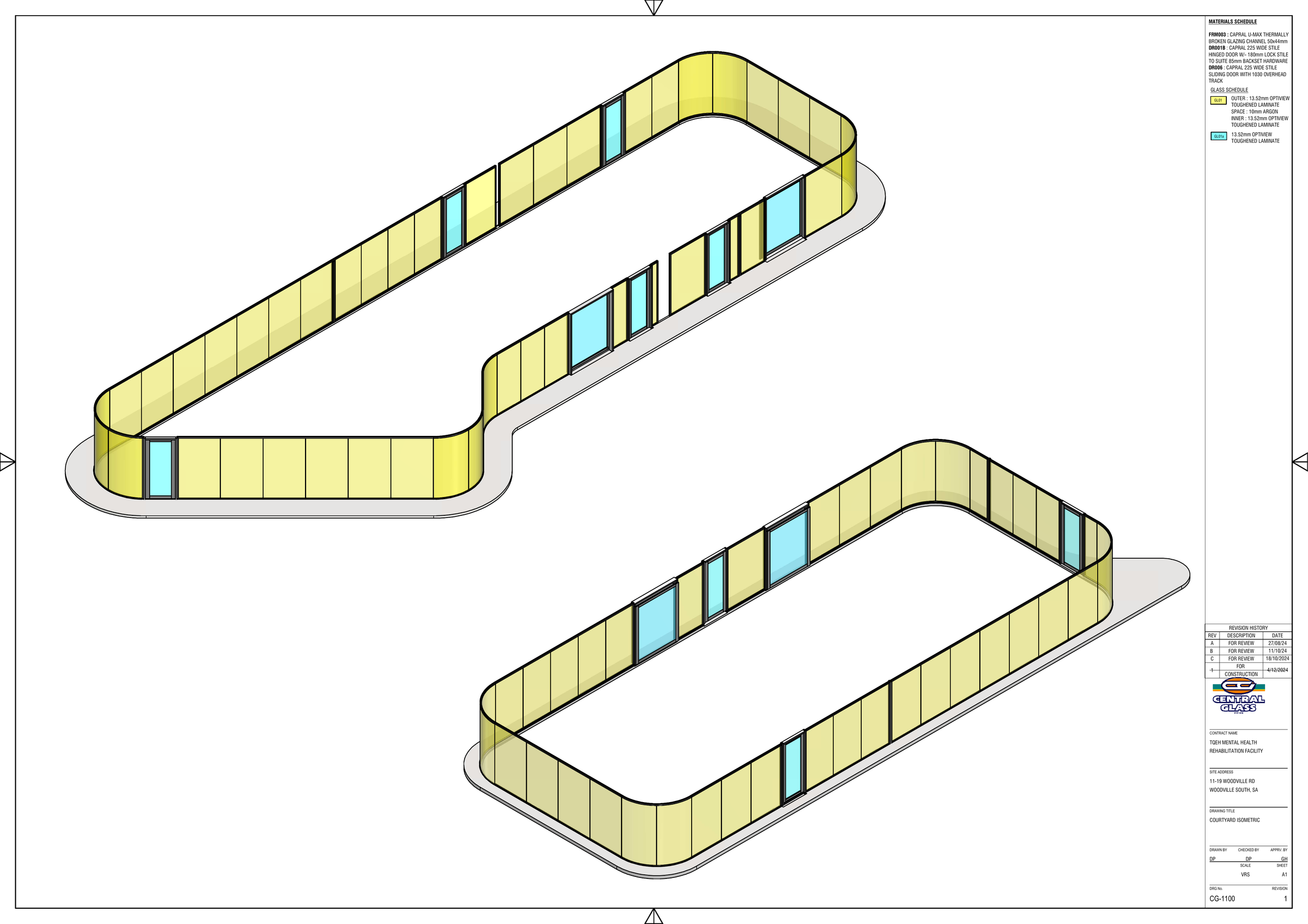

The isometric view communicates the complete curved courtyard window-wall assemblies at a glance—showing glazing, aluminium framing, doors, junctions and material intent together. The supporting 2D layouts define radii, set-out dimensions and interfaces for fabrication and installation.
